TL0205 (small) pressure switch pressure controller

Name: TL0205 small pressure switch pressure controller
Brand: NBSANMINSE
Price: 1 USD

Brand Name : NBSANMINSE

Model Number : TL0205

Certification : CE

Place of Origin : CHINA

Working viscosity : <1×10－3m2/s

Service life : 105 times

Ambient temp. : －25℃～55℃

Medium temp. : －25℃～80℃

Repeatability error : ≤1%

Pressure resistance : 150%

Contact Now

Overview
The TL0205 (small) pressure switch/controller adopts a bellows sensor, which can be used for neutral gases such as air, gas, water, and liquid media such as lubricating oil and light fuel oil.
The setting value of TL0205 (small) pressure switch/pressure controller is adjustable, with a range of -0.1~4MPa. The TL0205 (small) pressure switch/pressure controller is made of cast aluminum shell, which is waterproof and meets the requirements for marine use. Small scale design; Non adjustable backup with small switching difference.

Main Technical Performance

Working viscosity	<1×10^－3m²/s
Service life	105 times
Ambient temperature	－25℃～55℃
Medium temperature	－25℃～80℃
Anti-Vibration Performance	40m/s²
Repeatability error	≤1%
Contact capacity	AC 380V 3A(Resistive)AC 220V 6A(Resistive)
Pressure resistance	150%

Specifications
Switching difference is not adjustable

Setting value adjustment range (MPa)	Switching difference not exceeding (MPa)	**Allowable pressure ① (MPa)	Switching frequency/minute	Pressure sensor material		Order catalog number
Setting value adjustment range (MPa)	Switching difference not exceeding (MPa)	**Allowable pressure ① (MPa)	Switching frequency/minute	Casing	Corrugated tube	Order catalog number
－0.1～0	0.007	0.5	20	brass	stainless steel(316L)	TL0205.10-106071
0～0.1	0.008	0.5	20	brass	stainless steel(316L)	TL0205.10-110071
0.01～0.25	0.01	0.5	20	brass	stainless steel(316L)	TL0205.10-145071
0.01～0.3	0.01	0.5	20	brass	stainless steel(316L)	TL0205.10-146071
0.02～0.4	0.016	3.0	20	brass	stainless steel(316L)	TL0205.10-151071
0.03～0.6	0.035	3.0	20	brass	stainless steel(316L)	TL0205.10-156071
0.03～0.8	0.04	3.0	20	brass	stainless steel(316L)	TL0205.10-157071
0.03～1.0	0.04	3.0	20	brass	stainless steel(316L)	TL0205.10-158071
0.03～1.6	0.08	6.0	20	brass	stainless steel(316L)	TL0205.10-159071
0.05～2.5	0.09	6.0	20	brass	stainless steel(316L)	TL0205.10-169071
0.05～3.0	0.14	6.0	20	brass	stainless steel(316L)	TL0205.10-170071
0.05～4.0	0.2	6.0	20	brass	stainless steel(316L)	TL0205.10-171071

Switching difference is not adjustable (small switching difference)

Setting value adjustment range (MPa)	Switching difference not exceeding (MPa)	**Allowable pressure ① (MPa)	Switching frequency/minute	Pressure sensor material		Order catalog number
Setting value adjustment range (MPa)	Switching difference not exceeding (MPa)	**Allowable pressure ① (MPa)	Switching frequency/minute	Casing	Corrugated tube	Order catalog number
－0.1～0	0.0045	0.5	20	brass	stainless steel(316L)	TL0205.70-106071
0～0.1	0.0025	0.5	20	brass	stainless steel(316L)	TL0205.70-110071
0.01～0.25	0.01	0.5	20	brass	stainless steel(316L)	TL0205.70-145071
0.01～0.3	0.01	0.5	20	brass	stainless steel(316L)	TL0205.70-146071
0.02～0.4	0.014	3.0	20	brass	stainless steel(316L)	TL0205.70-151071
0.03～0.6	0.016	3.0	20	brass	stainless steel(316L)	TL0205.70-156071
0.03～0.8	0.02	3.0	20	brass	stainless steel(316L)	TL0205.70-157071
0.03～1.0	0.03	3.0	20	brass	stainless steel(316L)	TL0205.70-158071
0.03～1.6	0.035	6.0	20	brass	stainless steel(316L)	TL0205.70-159071
0.05～2.5	0.04	6.0	20	brass	stainless steel(316L)	TL0205.70-169071
0.05～3.0	0.05	6.0	20	brass	stainless steel(316L)	TL0205.70-170071
0.05～4.0	0.06	6.0	20	brass	stainless steel(316L)	TL0205.70-171071

TL0205 (small) pressure switch pressure controller

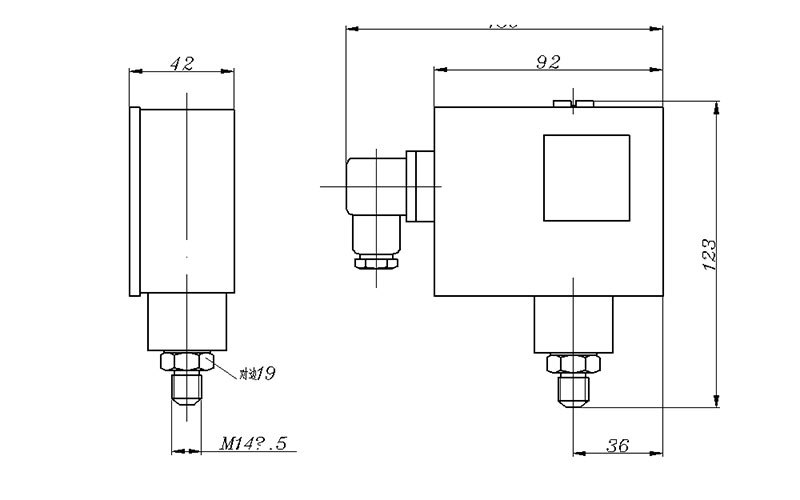

TL0205 (small) pressure switch pressure controller Images
